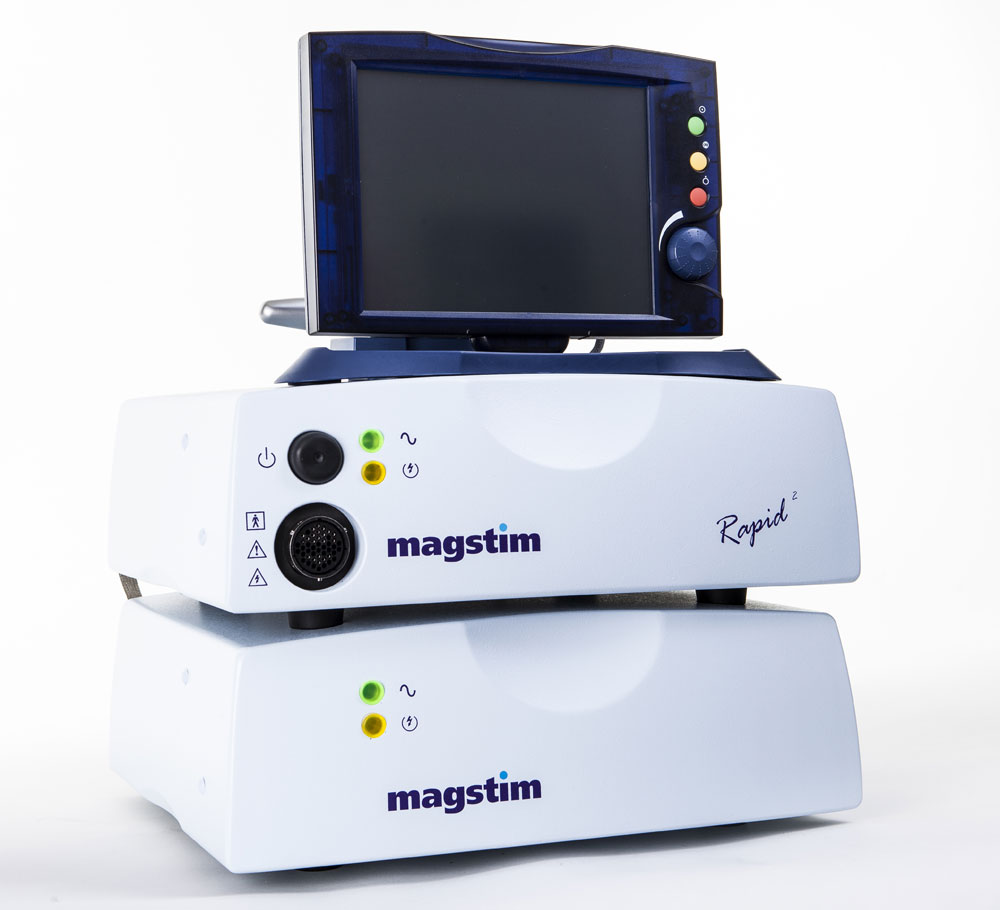

Magstim-Rapid2

The Magstim Rapid² is a single pulse and repetitive stimulator with high frequency capabilities.

Overview

The Magstim Rapid² is a single pulse and repetitive stimulator with high frequency capabilities. It is ideal for therapeutic applications as well as a wide variety of research fields.

There are two established versions of the system: Standard Rapid² (single PSU) and Super Rapid² (dual PSU), both are available as 230V or 110V.

The newest addition to the range is the Super Rapid² Plus1 (triple PSU), which is intended for applications such as theta burst where a higher power/frequency relationship is required.

Applications:

– Cognitive neuroscience
– Psychiatry
– Neurophysiology
– Rehabilitation

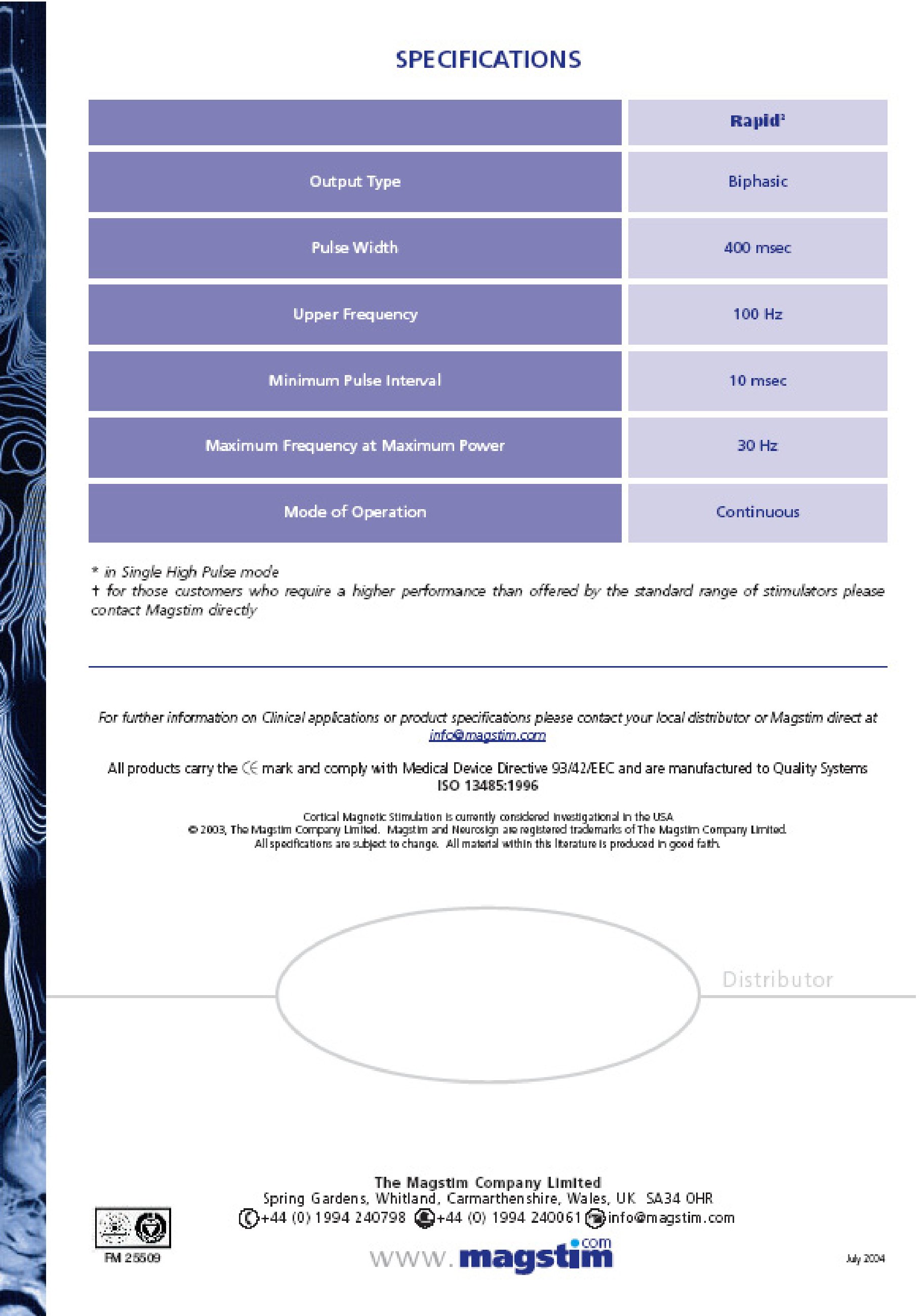

Specification

System Rapid²
Peak Magnetic Field 0.5 – 3.5 Tesla @ 100% output*

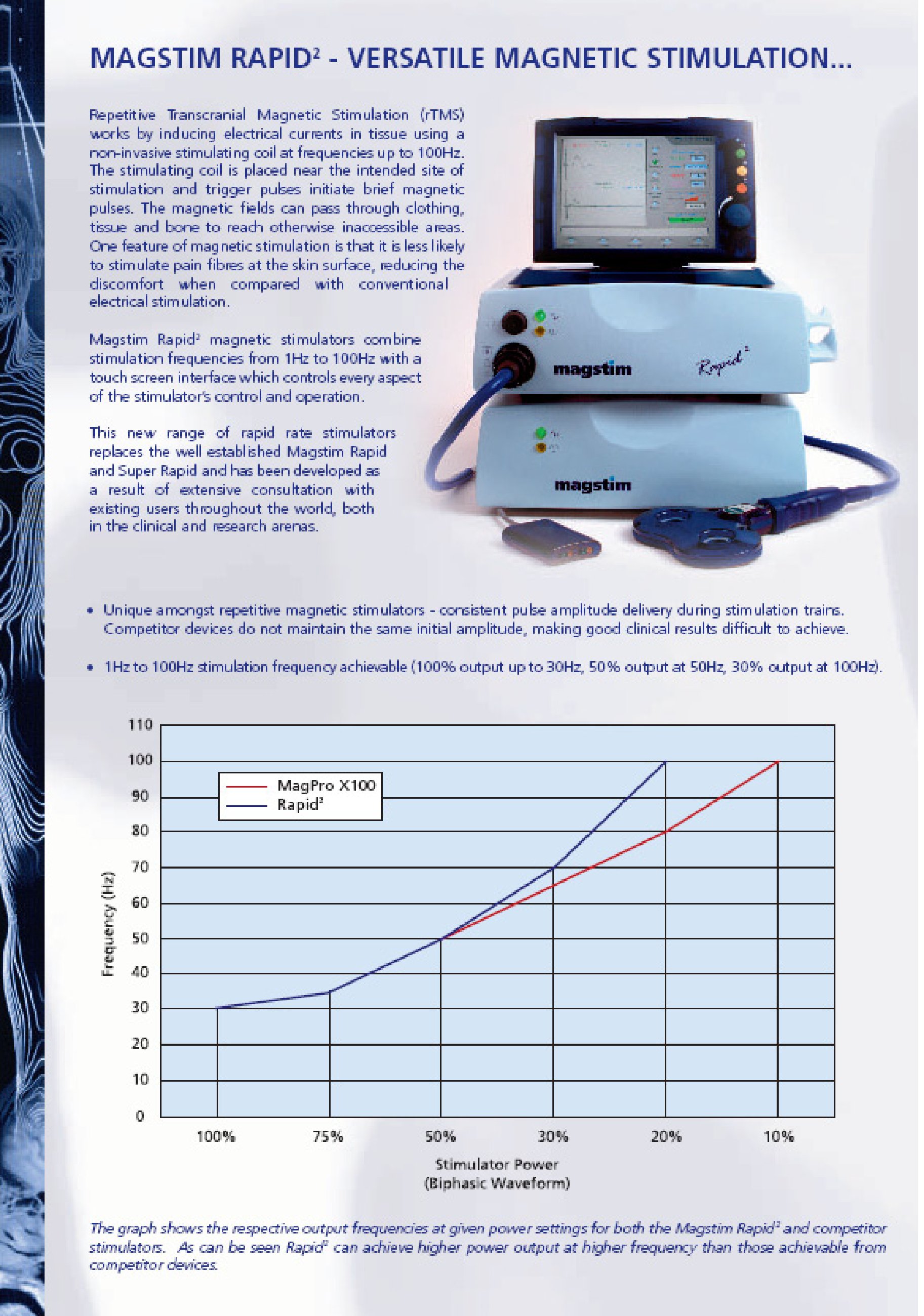

Repetition Rate
    Single PSU

  • 50Hz @ 30% output
  • 30Hz @ 50% output
  • 18Hz @ 80% output
  • 15Hz @ 100% output
    Dual PSU

  • 100Hz @ 30% output
  • 50Hz @ 50% output
  • 30Hz @ 80% output
  • 25Hz @ 100% output
Train Duration User selectable in 0.1s increments
Output Type Biphasic
Pulse Width 400µs
Upper Frequency 230V Single PSU – 50Hz Dual PSU – 100Hz
Minimum Pulse Interval Single PSU – 20ms Dual PSU – 10ms
Maximum Frequency at Maximum Power 230V Single PSU – 15Hz Dual PSU – 25Hz
Mode of Operation Continuous
Trigger Input / Output TTL, Active low or high (via D-type connector)
Output Type
  • Integrated colour ‘touch screen’ display.
  • Integrated 2 channel MEP recording. †
  • Highly intuitive multi parameter software controlling three modes of system function:
    • Single Pulse
    • Repetitive
    • Burst
    • Session
  • Internal Secure Digital (SD) memory card slot to enable system data to be saved and interrogated externally.
  • Data Acquisition Software.
  • Easy upgrade path to future software releases.
  • Integrated File Management Software.

* Stimulating coil dependant
† Customer Option
