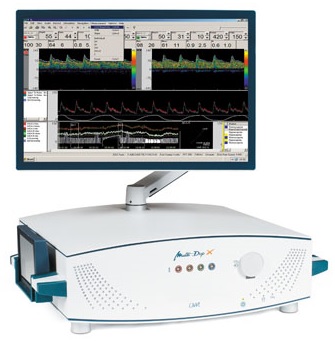

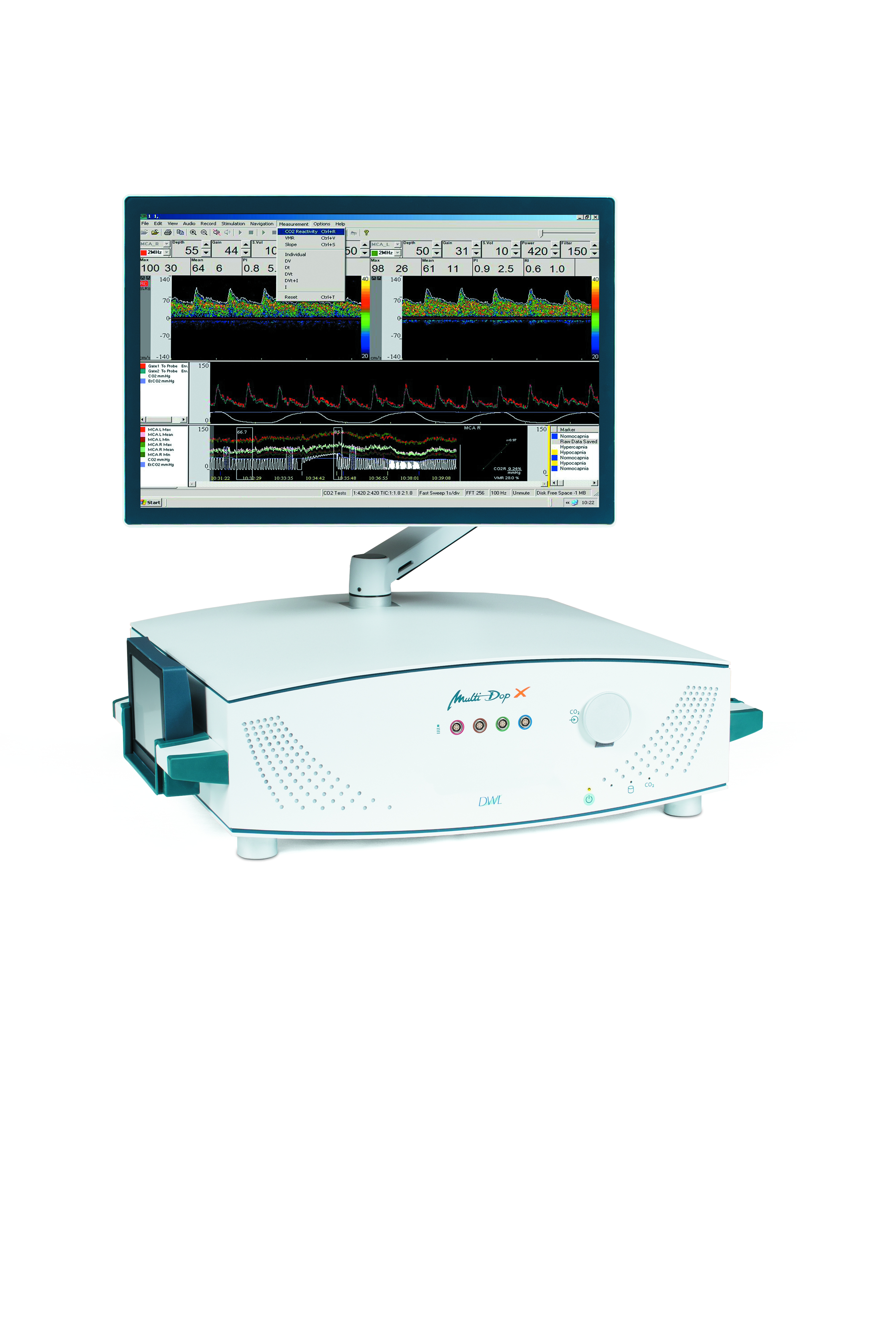

MultiDop X digital

The state-of-the-art all-in system

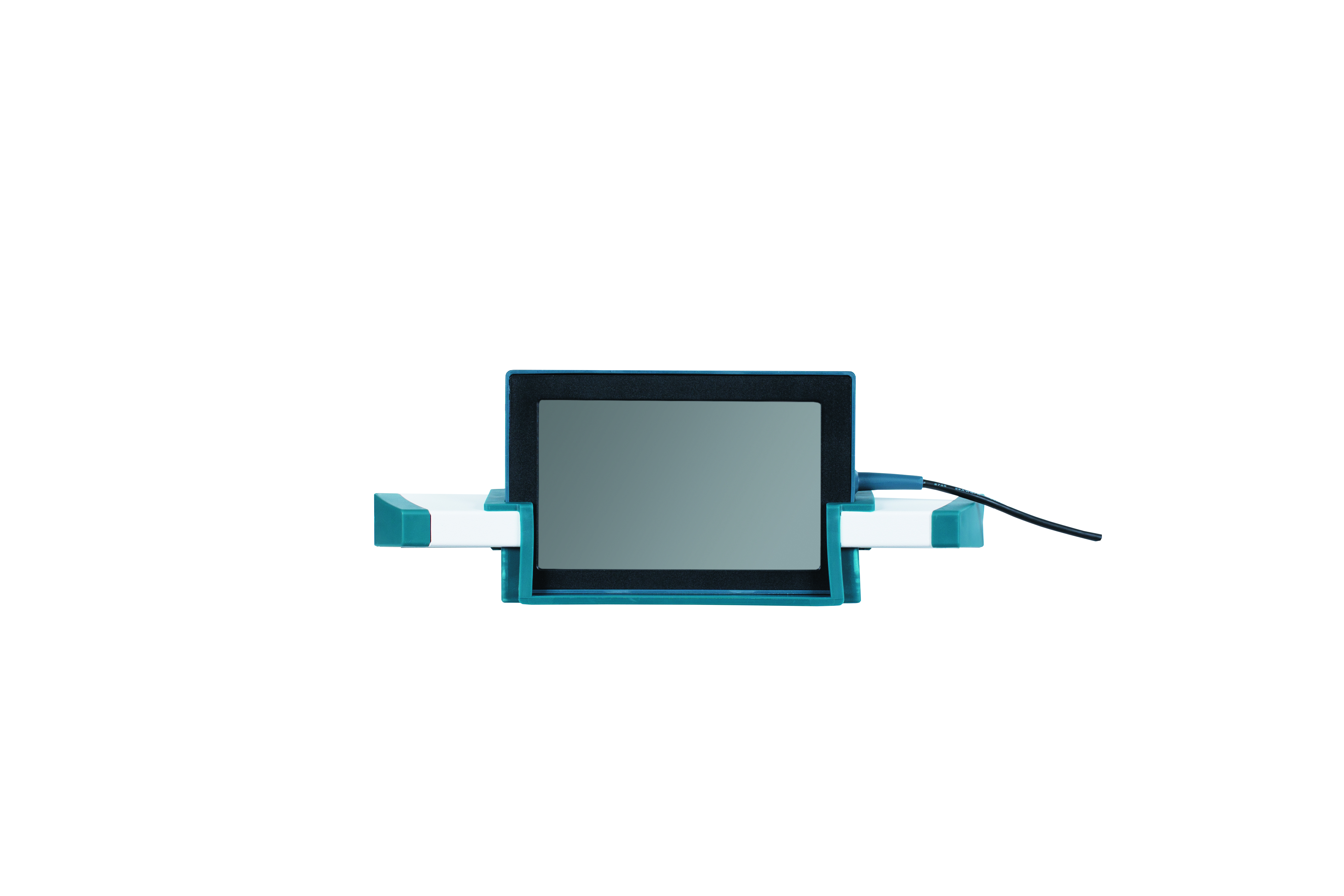

DWL® Doppler technology with unprecedented signal quality in a fully comprehensive configuration. Due to its highly ergonomic control concept, a broad range of applications is easily accessible at any time: A fully adjustable 22” monitor as well as an ergonomic system cart with extendable operation cockpit and freely programmable touchscreen remote control makes for fast and intuitive operation of the system. The option of a fully integrated CO2 module facilitates a dependable evaluation of cerebral autoregulation.

Multi-Dop® X digital has been developed to support complex applications and special function tests. The system is being used increasingly by the science and research community.

Combined with the fixations and special monitoring probes developed by DWL®, the Multi-Dop® X digital facilitates continuous monitoring and recording of the cerebral blood flow.

Using the specially developed DWL® software modules for detecting and differentiating micro emboli, solid and gaseous emboli can be detected and analysed.

In addition, software modules are available for use when performing cerebral autoregulation examinations. By use of the CO2/VMR test it is possible to evaluate cerebral autoregulation non-invasively.

With the Doppler M-Mode it is possible to measure through the entire depth range. Intensity, flow direction and depth information are displayed in real time.

Two Methods – One Solution

With the newest generation of the Multi-Dop® X digital, DWL® Compumedics presents an equipment system, which for the first time combines the latest Doppler technology with a Color Doppler Imaging module. In this way, intracranial investigations can be carried out with the DWL® Doppler and extracranial investigations with DWL® Duplex, quickly and precisely – within one single system. Multiple applications in neurological labs and clinical neurology make the Multi-Dop® X digital the comprehensive, future-oriented solution for the most demanding users.

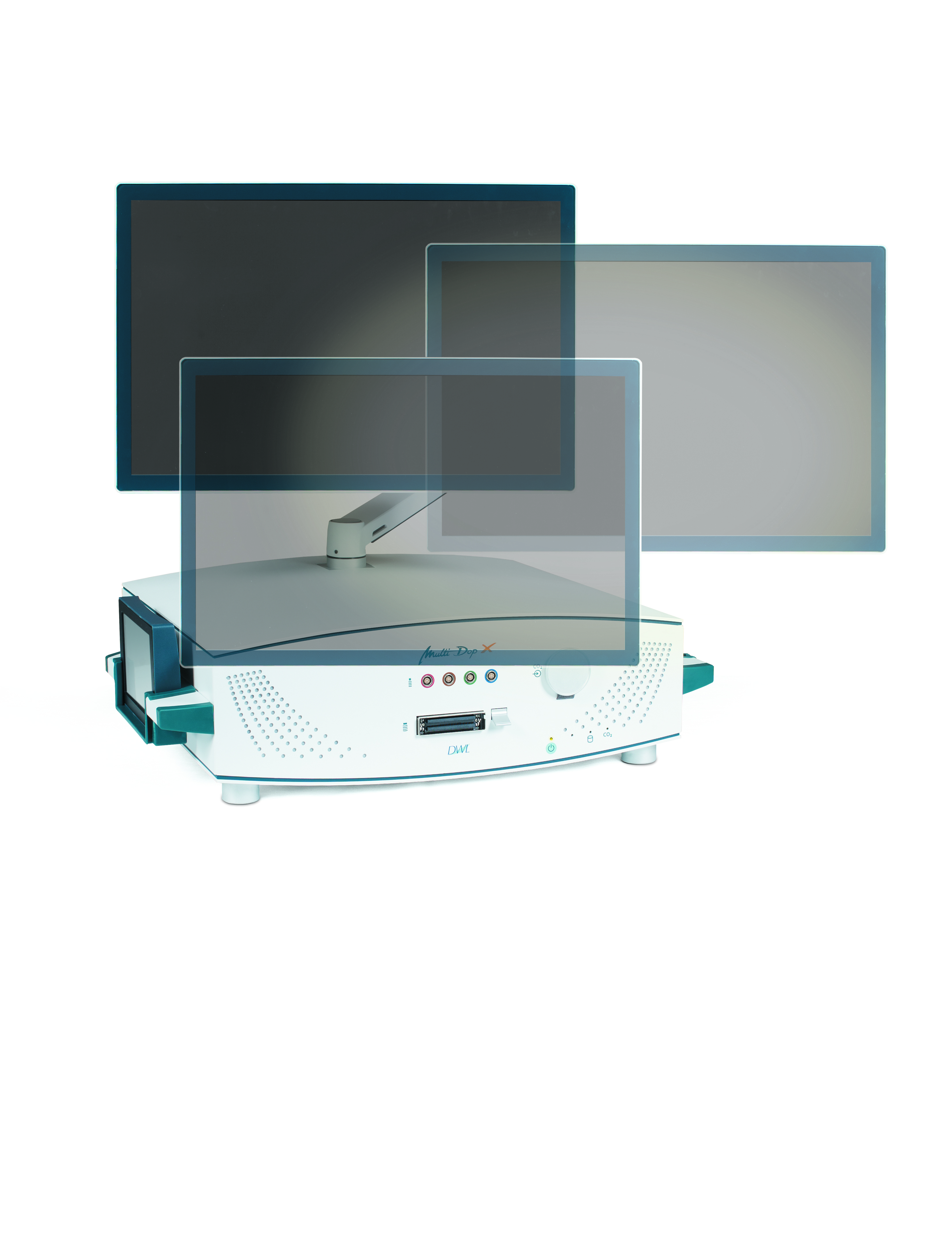

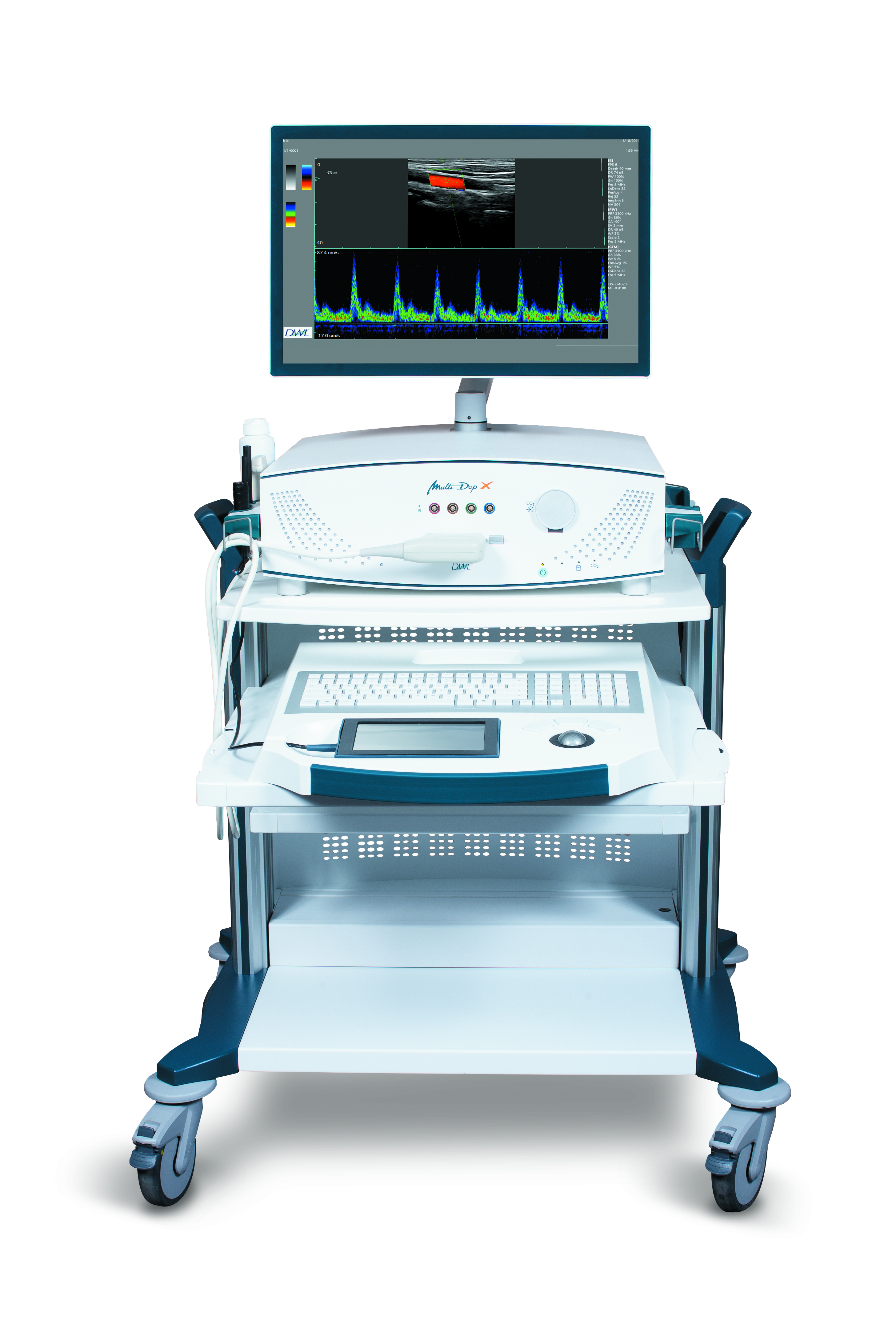

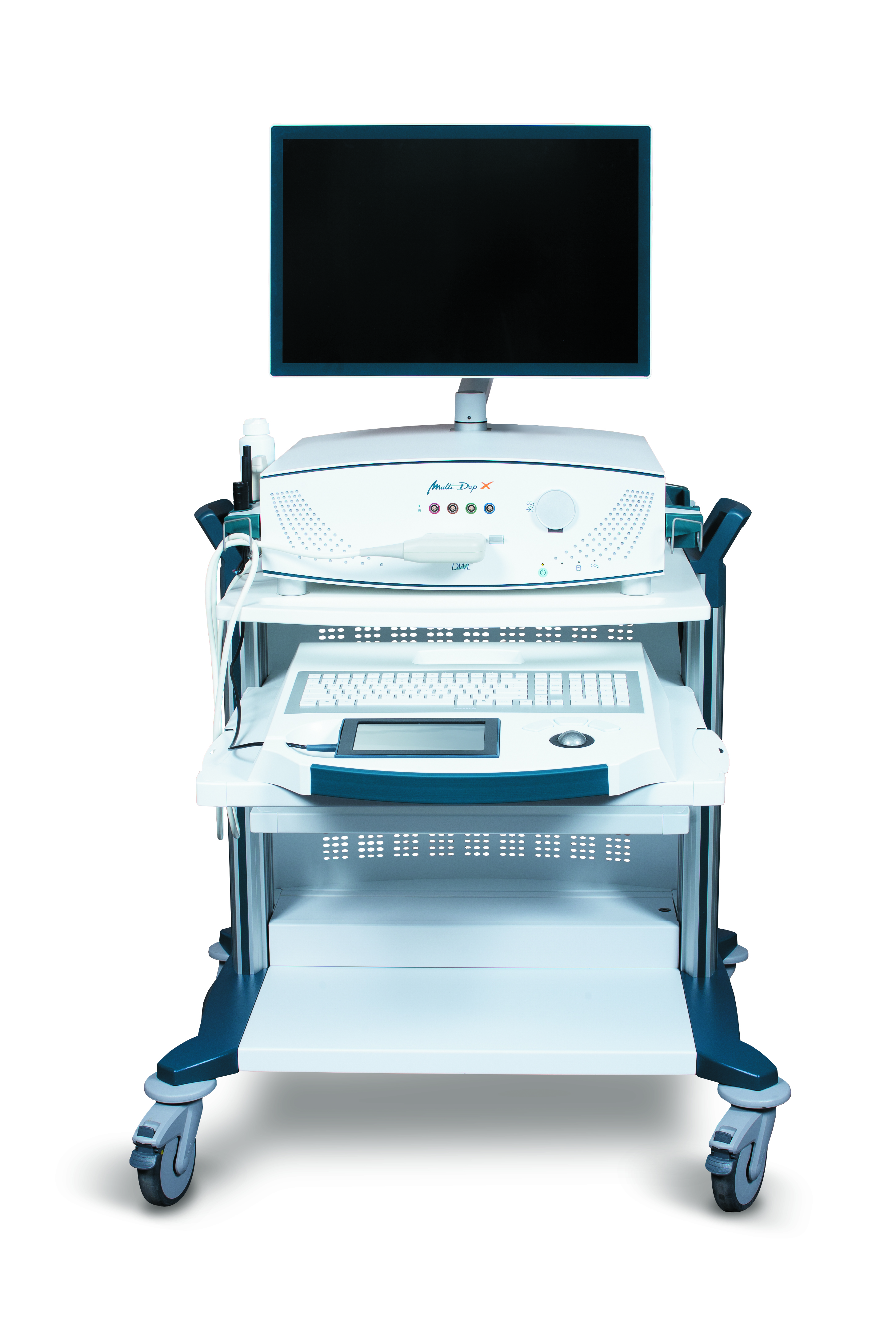

Due an optimized control concept, the system’s uniquely broad range of applications is  easily accessed in its entirety.  The system cart has been developed considering all ergonomic aspects specifically for the Multi-Dop® X digital with Color Doppler Imaging module. A  22´´ LCD monitor, which can be tilted and adjusted in all directions, as well as an extendable and turnable operation cockpit with fully programmable touchscreen control and trackball allows for comfortable operation and provides optimum, ergonomic working conditions.

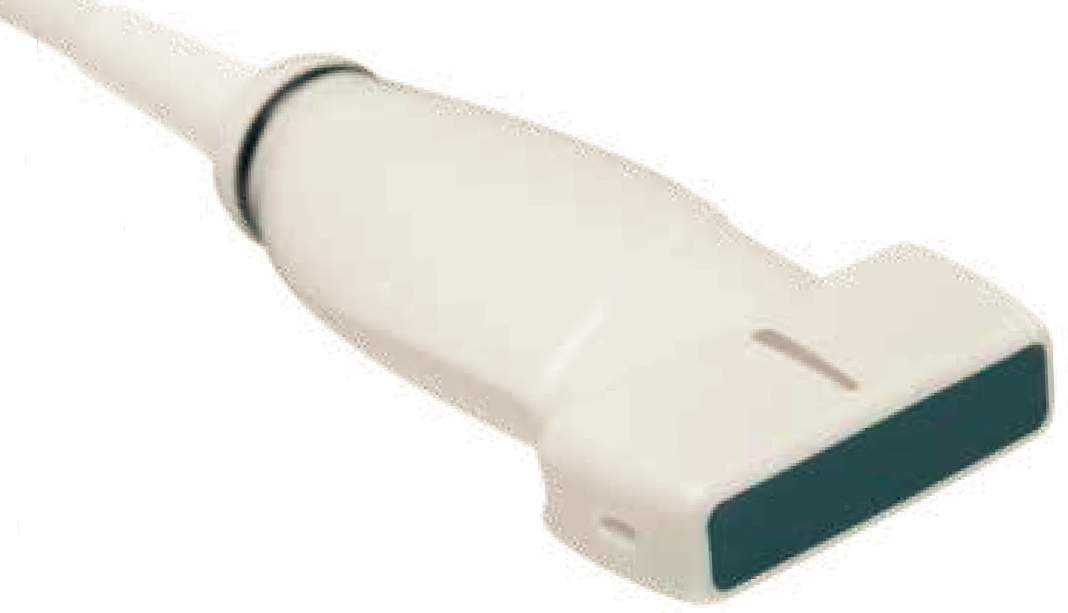

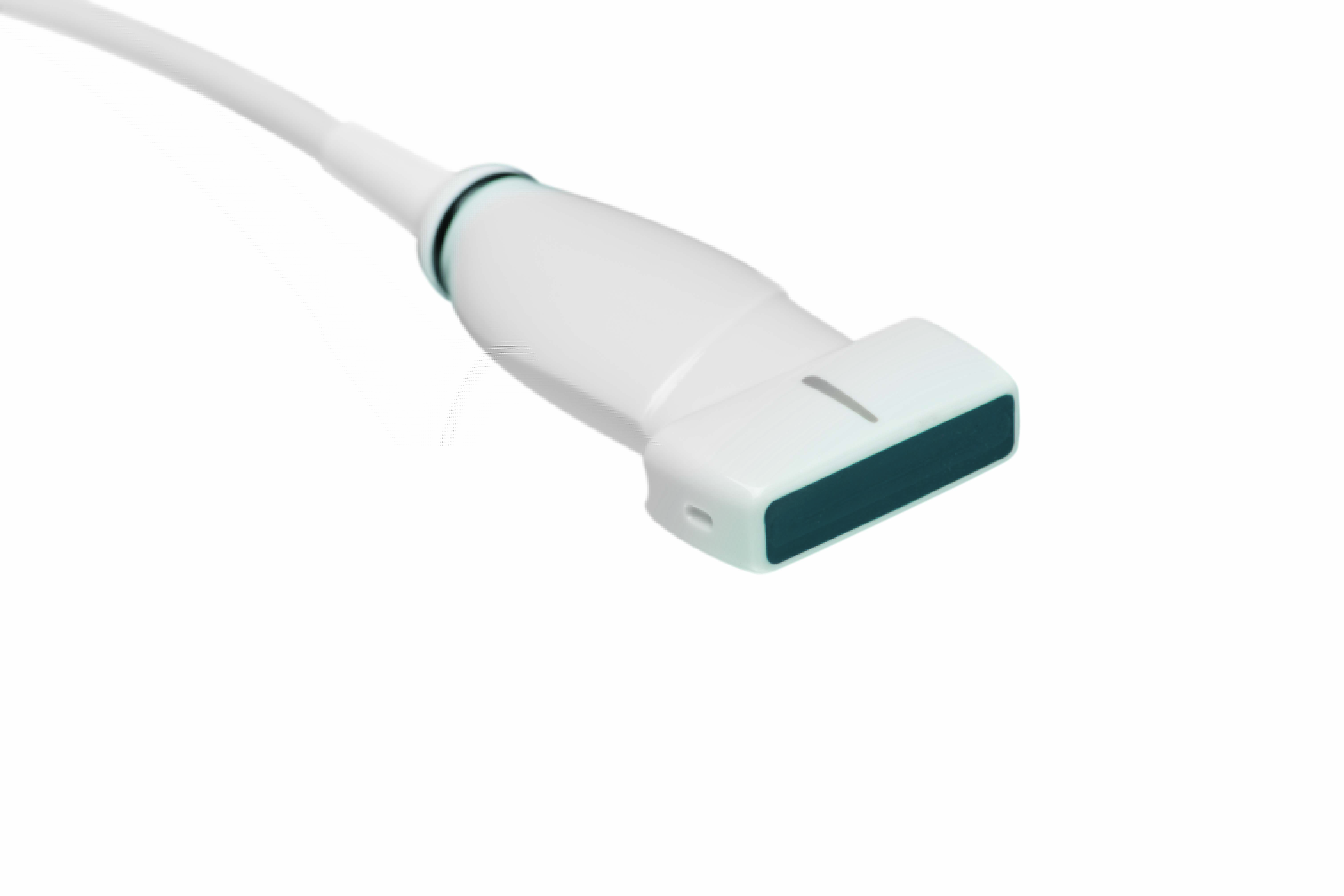

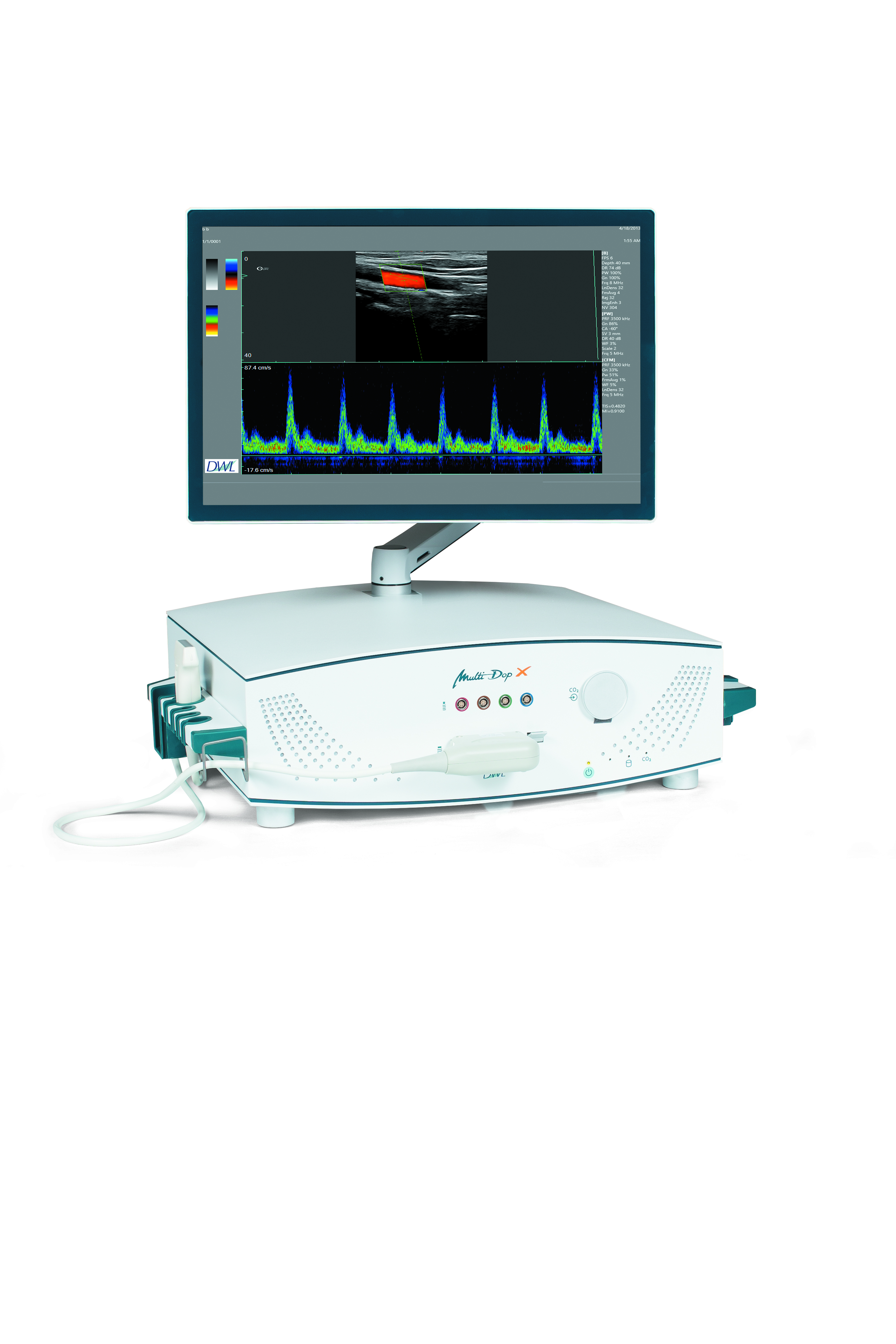

For extracranial investigations, the new Multi-Dop® X digital can be equipped with a Color Doppler Imaging module with linear array probe for Carotid Duplex in B-mode, Color-Doppler and Triplex-Mode. The imaging module is completely integrated and can thus be easily operated using the controls and user software of the Multi-Dop® X digital.

The Multi-Dop® X digital also offers the option of a fully-integrated CO2 module. The CO2/VMR test enables non-invasive evaluation of the vasomotor reserve and allows for reliable assessments of cerebral autoregulation.
