UV Smart D60 – Disinfection of endoscopes and TEE-probes

www.Cephalon.eu / Products / UV Smart D60 – Disinfection of endoscopes and TEE-probes

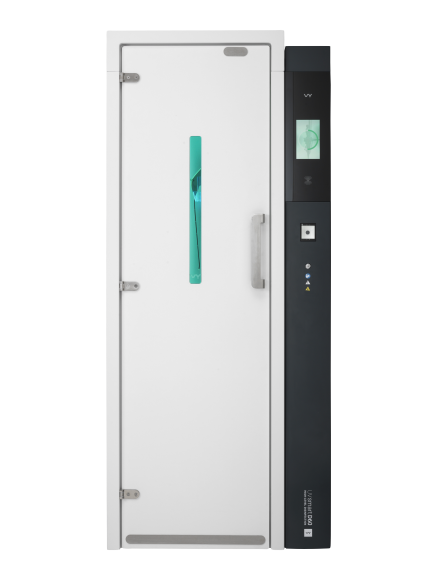

UV Smart D60 – Smart disinfection of channel-less endoscopes and TEE-probes in 60 seconds

Overview

The D-60 from UV-Smart can disinfection your Channel-less endoscopes and TEE-probes in 60 seconds with UV-C technology.
D-60 can be places on the hospital department where the Channel-less endoscopes and TEE-probes are being used, this means that you also can cut down the transport of the probes. Be using the D-60 you will save time on your total disinfection process and money due to transport damage on the Channel-less endoscopes and TEE-probes.

Se the 7 step process for disinfection here.

Step 1: Start the process Pre-clean your equipment and perform a leak test
Step 2: Scanning Scan your ID and the equipment to comply and store necessary data
Step 3: Placement Place the equipment in the D60 and close the door
Step 4: Disinfection Wait 60 seconds for the D60 to finish the cycle
Step 5: Scanning Scan your ID
Step 6: Hand disinfection Disinfect your hands
Step 7: Finished! Remove the disinfected equipment from the D60. It is now ready for use.

Specification

Technical specifications

Channel-less endoscopes and TEE-probes

Dimensions

Width: 861 mm
Depth: 473 mm
Height: 2033 mm

Disinfection cycle

60 seconds

Effective against

Bacteria, spores, yeast, fungi, mycobacteria, tuberculin and viruses

Compatibility Pentax

Pentax has conducted a compatibility test with the D60 and Pentax endoscopes to check the impact of UV-C light on endoscope materials. The conclusion is very positive and the D60 has received compatibility approval from Pentax.

Benefits

CE Certificate

The D60 is CE-certified in 2022 (MDD Class IIa)

‍

Standards

Our product complies with NEN-EN 60601-1 (Medical electrical equipment – General requirements for basic safety and essential performance – Collateral standard: Electromagnetic disturbances – Requirements and tests). This certificate indicates that the D60 complies with the general safety requirements for medical electrical equipment.

The EN 14885 standard is used as a reference for the D60 (Chemical disinfectants and antiseptics – Application of European Standards for chemical disinfectants and antiseptics). This certification means that the equipment achieves the same level of disinfection as wipes and liquids (as there is currently no guideline for UV-C).

UV Smart Technologies B.V. has held the NEN-EN-ISO 13485 certificate since 2022. This certification is the international standard for manufacturers, suppliers and distributors of medical devices to show that they comply with the legal requirements for medical devices.

‍

Patent protection

Impelux™ is a patented technology that uses UV-C for guaranteed disinfection without damaging equipment and with validated and continuous effectiveness.

Gallery
